Getting started with home wind energy initiatives can set you once more a fairly penny in case you buy a accomplished product. Nevertheless in case you are somewhat bit bit helpful and don’t ideas scrounging for provides and getting ingenious throughout the storage or yard, you can assemble your particular person DIY wind turbine for about $30 in provides.
Provides Needed to Assemble Your Private Wind Turbine

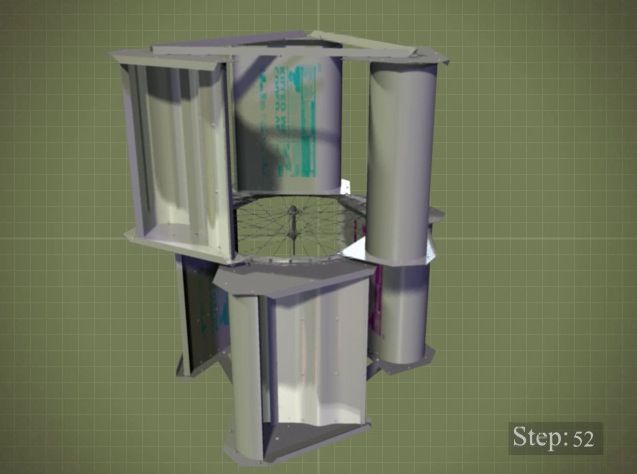

We now have beforehand coated Daniel Connell’s open-source concentrated picture voltaic collector plans, nevertheless he has moreover printed one different good DIY renewable energy problem: A vertical axis wind turbine based mostly totally on the Lenz2 carry+drag design. Connell’s design requires using aluminum lithographic offset printing plates to catch the wind, which he says may be obtained cheaply (or presumably even free) from an offset printing agency, and numerous {{hardware}} plus a bicycle wheel.
“The turbine makes use of the ~40% mechanically surroundings pleasant Lenz2 carry+drag design. It is made exclusively from scrap provides aside from the bolts and pop rivets, and should worth about $15-$30 for the three vane mannequin, which may be made by one specific particular person in six hours with out lots effort.”
Aside from basic devices, along with a hand drill, it would be best to buy or borrow a pop riveter and some assorted {{hardware}} (bolts, nuts, and washers) to assemble this method. In response to Connell’s notes, this DIY wind turbine, which may be in-built each a 3 vane or six vane mannequin, has effectively survived sustained winds of 80 km/h (three vane) and as a lot as 105 km/h for the six vane mannequin.
Output and Features
It is a little bit clip of the vertical axis wind turbine being challenged by sturdy winds:
With the intention to reap the ability from this wind turbine, it’s crucial in order so as to add an alternator to the rotor, along with a way of storing {the electrical} power, but it surely certainly could also be used merely for the mechanical rotation, akin to to pump water or spin a flywheel for various functions.
Whereas there are a selection of variables which will affect the output of this DIY wind turbine, along with the effectivity of the alternator used (and clearly the tempo of the wind the place it’s located), in response to Connell, using a “50% surroundings pleasant automotive alternator (the one and least costly selection) ought to supply 158 watts {of electrical} power in a 50 km/h wind, and 649 watts at 80 km/h” with this design.
[Update: In an email conversation with Connell, he stated that “a six-vane version with an efficient alternator should produce at least 135 watts of electricity in a 30 km/h wind, and 1.05 kilowatts at 60 km/h.”]
This homebrewed wind turbine is just not basically going to be powering your personal house (although a sequence of these could in all probability be used to generate enough electrical power to price a battery monetary establishment for modest home use), it could possibly be a terrific hands-on faculty problem or homeschool train about wind energy.
